4.5 Meter Steel Framed Yurt

4.5 m Steel Framed Yurt mai

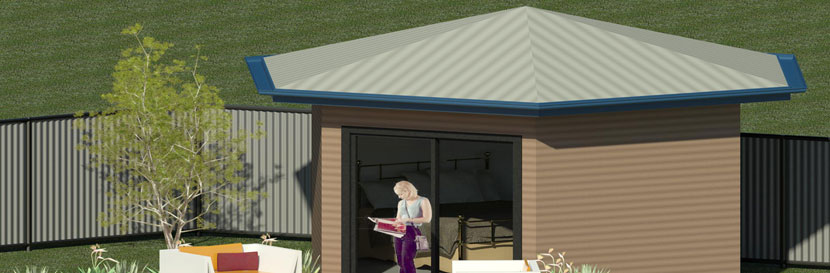

About the 4.5 Meter Steel Framed Yurt

PricePlease Enquire


The Shed Alliance Yurt is based on a traditional design used by nomads as a transportable dwelling for thousands of years.

Stylish, functional, creative and edgy – the Yurt is all of this and more.
The Yurt is fabulous for an office, studio, tourist cabin, parent’s retreat, games room or teenage bedroom in the back yard.
The Yurt can be built on a concrete slab or raised steel floor system with timber flooring.

Several Yurts can be networked together to make a home complex with a walkway between them. Build a living area and a smaller one or two as a sleeping module and kitchen & bathroom unit.
Walls are ready to line internally with nominal 600mm max steel stud centres. Add ceiling battens to line the ceiling.

Steel floor system – assumed 600 above ground– Steel bearers, joists and SHS posts - GST included – no floor decking (EG Yellow Tongue) & nil fasteners for floor
Additional $3375.00.


Features Included


Steel house framed panel design

Six sided – Hexagon style

20 degree pitch roof

41m / per sec wind speed design standard

Bluescope Colorbond roof and rain goods

Bluescope Colorbond Horizontal Corro wall cladding

4.5 m span unit – 2.45 hi

One glass sliding door – standard – 2100 Hi * 1800 wide

2 * glass windows – 900Hi * 1500 wide – with timber reveals and insect screens

Insulation to roof and walls

All kit materials with hardware to erect

Engineering plans and Certification




Optional Extras


Class 1 Habitable dwelling plans

Change glass schedule – EG Louvre windows or double hung type

Bathroom type window with obscure glass

Steel Floor frame systems

Cyclonic wind loads

Other wall claddings

Eaves




Items Not Included


Delivery to site - unless quoted
Internal fit out materials
Stairs with floor systems
Floor decking with floor systems
Verandah

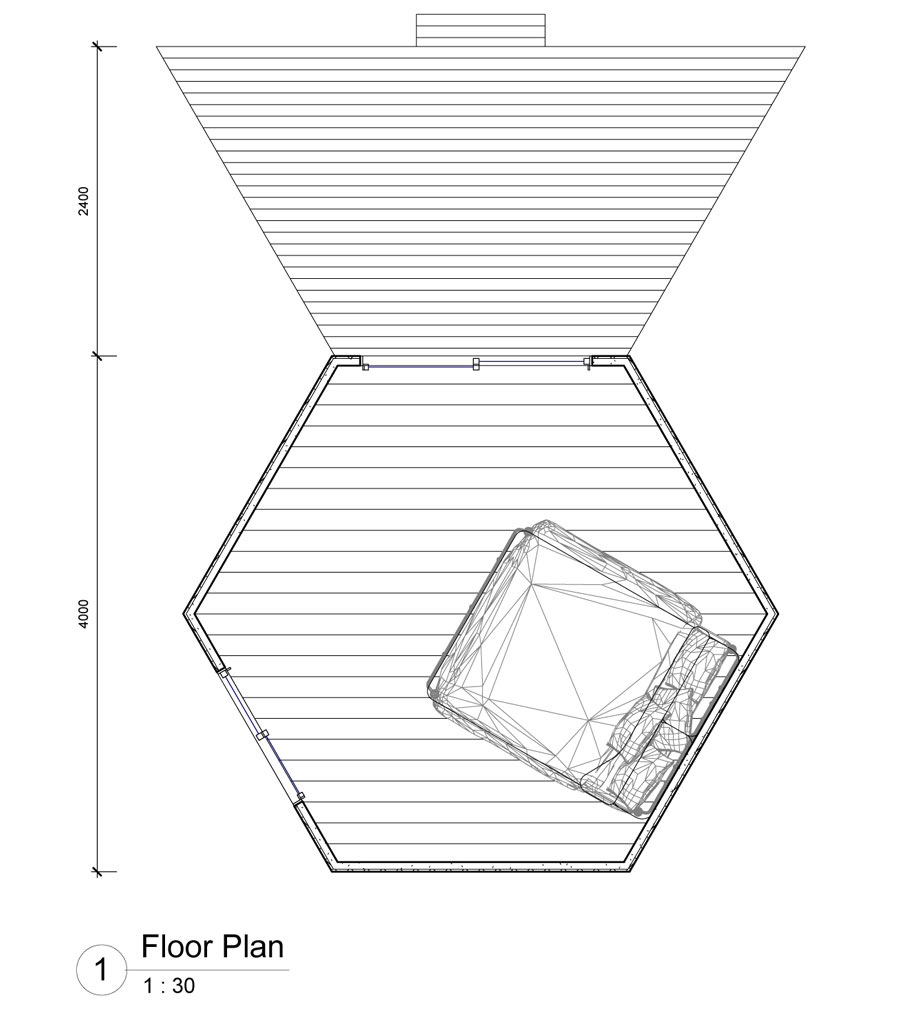

Example Floor Plan


Floor Plan


Click to enlarge

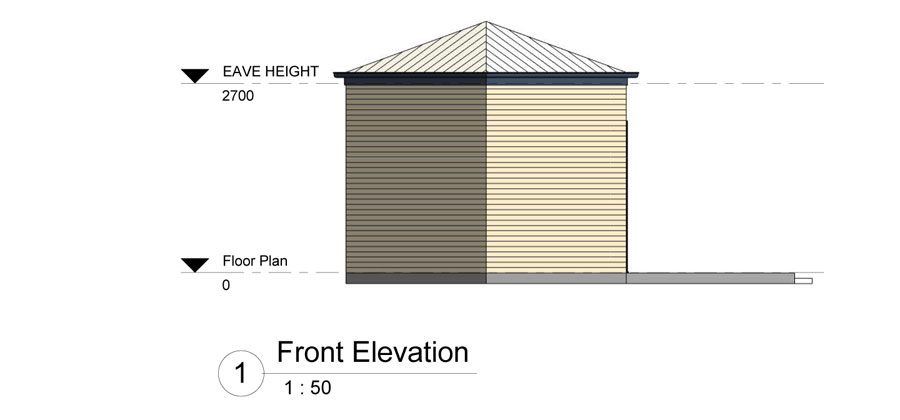

Front Elevation


Click to enlarge

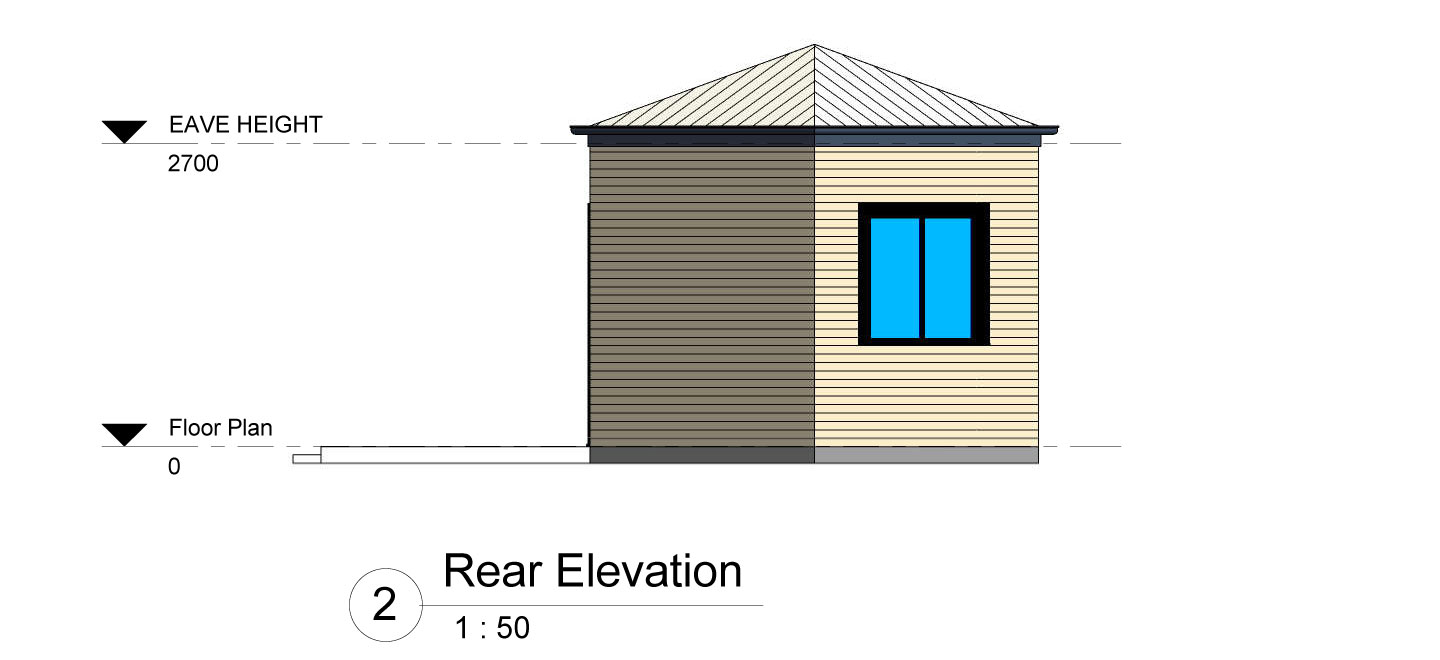

Rear Elevation


Click to enlarge

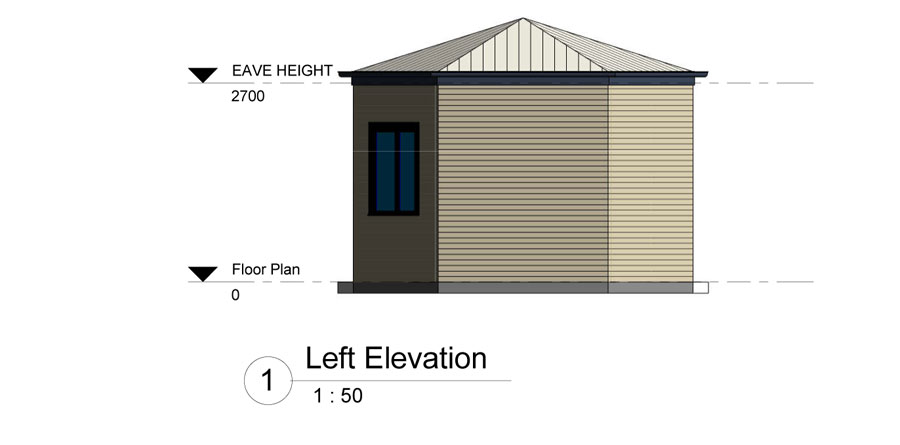

Left Elevation


Click to enlarge

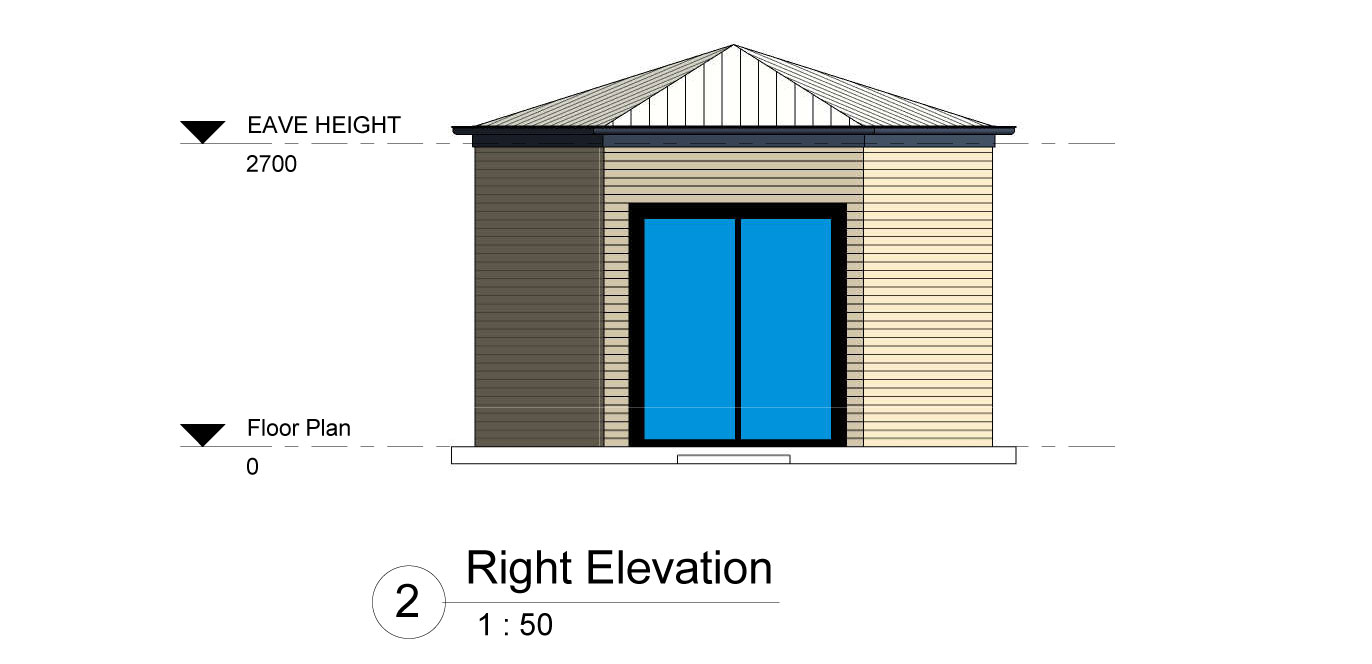

Right Elevation


Click to enlarge
