The Tweed

The Tweed

About The Tweed

Bed2
bath1
PricePlease Enquire
Make An Enquiry

The Tweed is a 2 bedroom steel cottage which is 8.4m in length and has 1 bathroom, open plan living area with kitchen, sliding door and windows. Experience the outdoors while still keeping with the surroundings.

Overview

  • 2 Bedrooms
  • 1 Bathroom
  • Open plan Kitchen, Dinning & Living
  • Size: 7.2m x 8.4m

Specifications

The Tweed 8400

Details

Size

(gable/gutter)		 7200mm x 8400mm

Wall Height

 2430mm

Roof Styles

See gallery on this page to view
Gable Style Roof
(standard)		 Dutch Gable Roof
(optional extra)		 Hip Style Roof
(optional extra)

Bedrooms

 2

Windows

  • 3 - h1200mm x w1800mm Sliding Windows

  • 1 - h900mm x w1200mm Sliding Window

  • 1 - h600mm x 600mm Sliding Window

Doors

  • 1 - h2100 x w1800mm Sliding Glass Door

  • 1 - w820mm Swinging Door (External)

  • (Internal doors and linings not included)

Features Included

Engineer designed Steel House Framing System.

Galvanised high tensile steel materials.

Factory fabricated house frame panels for external and internal walls (studs at nominal 600mm centres).

Steel roof trusses fabricated at standard 20 degree pitch (1.2 m centres).

Steel roof battens.

Steel ceiling battens.

Bluescope Colorbond roof sheeting (full colour range available).

Colorbond raingoods (gutters,capping and flashings).

Colorbond horizontal external wall cladding.

Sliding glass door and windows (as per floor plans).

All windows supplied with aluminium frames and timber reveals (to suit internal lining).

Hardware to erect basic kit.

Gable roof style standard (dutch gable & hip roof styles optional extras).

Supplied to Class 1 habitable standard.

Standard engineers plans supplied.

Kit to W41N (N3) windload (Cyclonic upgrades available if required).

450mm Eaves to sides


Optional Extras

Insulation to roof and walls.

Steel floor systems for raised floors.

Hip roof or Dutch gable roof style.

Steel floor systems for raised floors.

Security / insect screens to windows.

Awnings to sides.

Gable end roof overhangs.

Carport under gable roof line.

Cyclonic windloads.

Delivery to site.

Items Not Included
All Internal fitout materials including - gyprock, architraves, skirting, internal doors, plumbing, electrical fittings, kitchen or bathroom fittings, yellow tongue flooring if on a raised floor system or additional hardware , locks and fittings.
Soffit lining.
Alternative wall claddings - for example CSR weathertex boards, Hardyplanks, Blueboard, Plywood etc. (We will deduct cost of horizontal wall cladding from kit price).
Any other items not listed as inclusions.

Floor Plans - Roof Types


Gable Roof


Click to enlarge

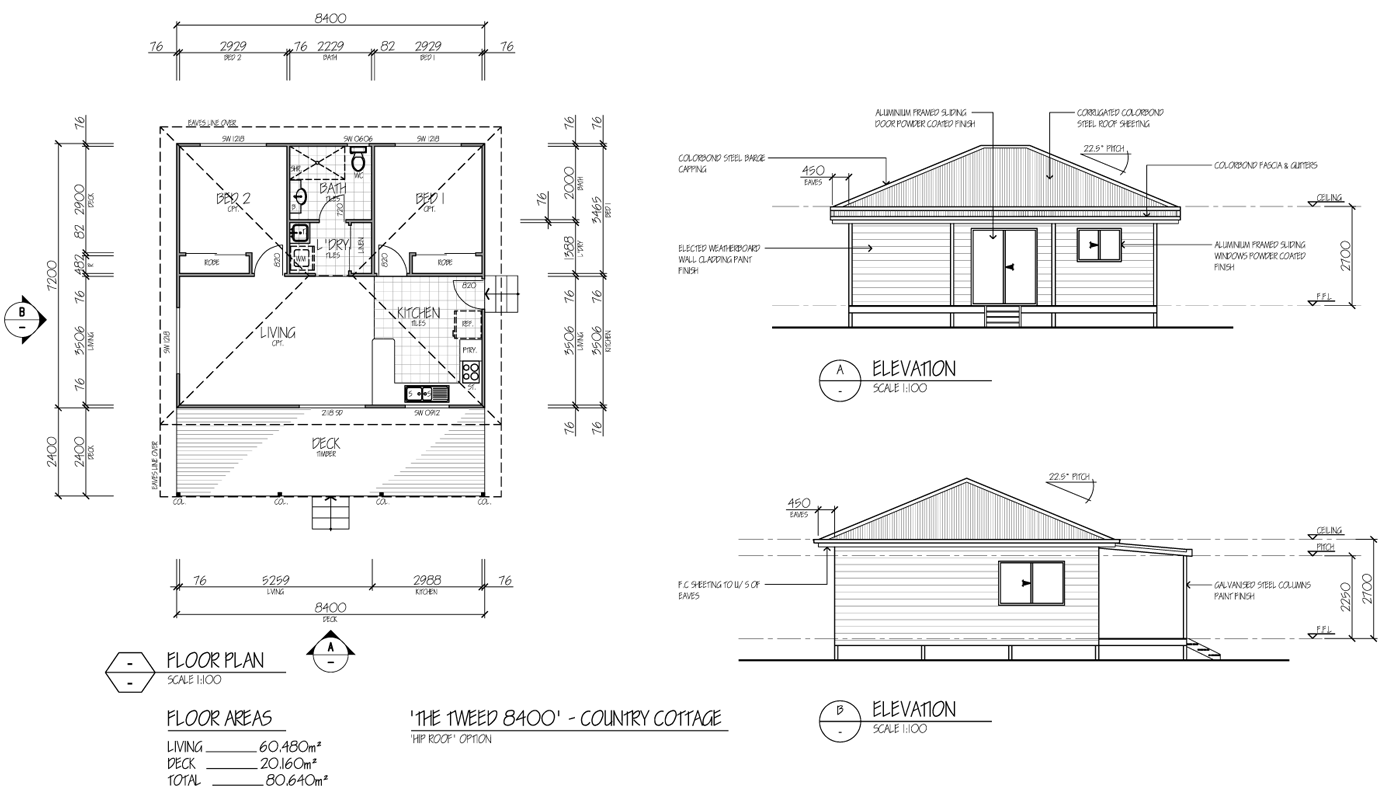

Hip Roof


Click to enlarge

Dutch Gable Roof


Click to enlarge

Skillion Roof


Click to enlarge

Elevation


Click to enlarge

Click to view
View Colours

Important Information

* Before ordering your building, ensure you lodge with your local authority the necessary Building Approval application.

* Please allow a minimum of 30 working days for manufacturing and delivery.

* Your building will be supplied as a complete kit. A comprehensive, step by step instruction manual is included along with colour coded screws and fittings. Any costs associated with site specific requirements are the responsibility of the land owner. The price does not include erection.

* Standard powdercoat window frame colours include - Primrose, White, Black, Beige, Silver, Deep Ocean.

* Insulation available includes - air bubble wrap type, or 50 mm blanket with bonded foil - suitable for under roof, walls , ceilings or under flooring if on raised floor.

* Steel floor system includes - steel bearers, steel joists, and steel RHS columns into 900 deep footings to suit nominal 600 mm above ground. If natural ground levels fall away, columns can be supplied longer to suit - at extra costs.

* All pricing ex South east Queensland - some variation may occur with interstate suppliers and materials prices. All prices ex factory - delivery fees for building materials to site apply - crane truck required to deliver wall frames and trusses.

(Please note that the colours shown are an indication of the colours available. All products advertised are subject to availability. Products may vary from images shown and any delivery charges are additional and will be advised)

Items Not included

* Any site works or builder costs or site building costs which a builder will need to quote - such as Site power pole and connection, site toilet, site fencing and more

* Any internal fit out materials, any plumbing or electrical materials, external access doors other than glass where stipulated

* Flooring such as Yellow tongue or timber decking on raised verandahs - or special fixing screws. Also not included - any stairs or balustrades to internal floors

* Soils test and slab design or footings by an engineer

* Council submission or costs for certifier or to submit to council or site inspections
